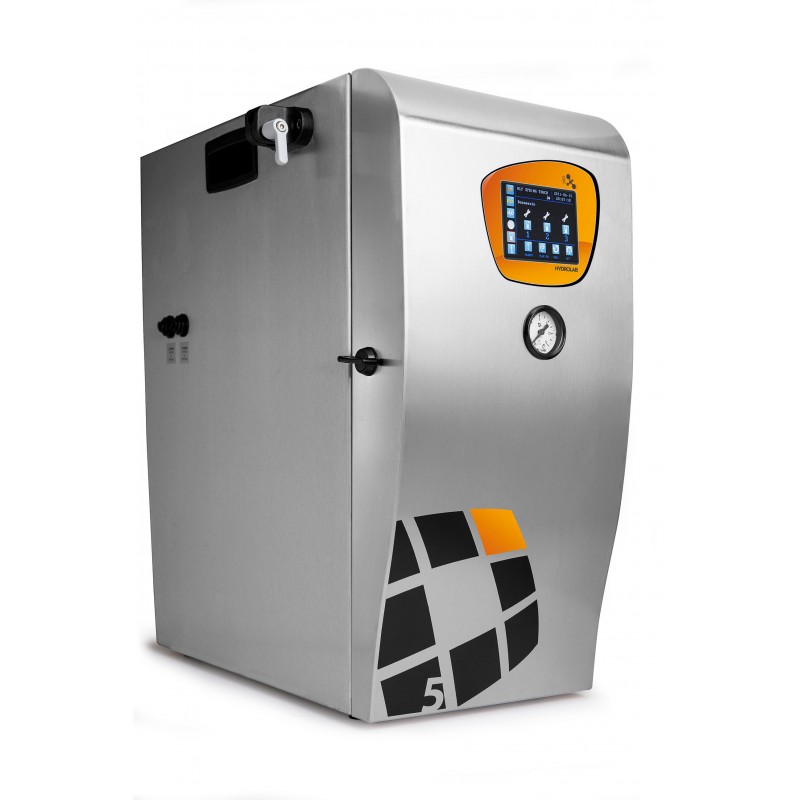

Ultrapure Water Equipment R5

In addition, these equipments have advanced technology that guarantees the removal of impurities and the production of high purity water, which makes them ideal for use in laboratories, pharmaceutical, biotechnological, chemical and electronic industries. Ultrapure water equipment is also very easy to use, with intuitive screens and automated control systems that simplify the production process and guarantee the quality of the water produced. With these equipment, you can be sure that your water is pure and safe for use in a wide variety of critical applications.

Manufactured with the highest quality filtration and treated with the strictest quality standards, ultrapure water equipment is a reliable and trustworthy product. With a long lifespan and minimal maintenance burden, ultrapure water equipment is an essential tool for your production and purification operations.

Powered by tap water:

Stages of the purification process:

• 5 μm sediment pre-filter,

• integrated module (sediment-carbon-softening),

• Inverse osmosis,

• demineralization in a spectrally clean ion exchange TOC bed,

• UV lamp 185/254 nm,

• 0.45/0.2μm microfiltration capsule.

- System efficiency: min. 5 dm3/hr.

- Conductivity of purified water < 0.055 μS/cm.

- Automated and unattended system performance.

- Water collection point – first purity class (PN-EN ISO 3696:1999, ASTM, FP) according to a 0.45/0.2μm microfiltration capsule.

- Adjustable and movable stainless steel arm that supports the water collection points: available adjustment ranges: up/down, forward/backward, left/right.

- The possibility of installing an additional water intake point for general use water (third class; PN-EN ISO 3696:1999).

- Equipped with a 10 dm3 pressure tank for third class.

- It can be connected to other devices.

- Automatic shutdown when the tank is full or the filter valve is closed.

- Automatic recirculation of ultrapure water between water intakes (modes: continuous or periodic).

- Maintenance procedures can be carried out by the user (easy substitution of disposable materials).

- Clear water flow min. 1 l/min.

- Intended to be fed with cold water: 5-40°C.

- Installation can be done by the user.

- Acid-resistant stainless steel housing (inox).
